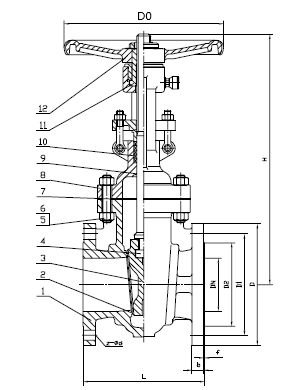

| DN | L | D | D1 | D2 | Z-D | |
| ряд 1 | ряд 2 | |||||
| 50 | 250 | 250 | 160 | 125 | 102 | 4-18 |
| 65 | 280 | 280 | 180 | 145 | 122 | 8-18 |
| 80 | 310 | 283 | 195 | 160 | 133 | 8-18 |
| 100 | 350 | 305 | 230 | 190 | 158 | 8-22 |
| 125 | 400 | 400 | 270 | 220 | 184 | 8-26 |
| 150 | 450 | 403 | 300 | 250 | 212 | 8-26 |
| 200 | 550 | 413 | 375 | 320 | 285 | 12-30 |
| 250 | 650 | 457 | 445 | 385 | 345 | 12-33 |
| 300 | 750 | 502 | 510 | 450 | 410 | 16-33 |
| 350 | 850 | 850 | 570 | 510 | 465 | 16-36 |
| 400 | 950 | 950 | 655 | 585 | 535 | 16-39 |
| 450 | 1050 | 1050 | 680 | 610 | 560 | 16-39 |
| 500 | 1150 | 1150 | 755 | 670 | 615 | 20-42 |
Maximum working pressure: 4.0 Mpa
Working environment temperature: -20 ℃ - 300 ℃
Working medium: water, steam, oil and other non-aggressive media
Body, cover material: WCB,304,316,321
Disc material: 2Cr13,304,316,321
Handwheel material: Malleable Iron
Bushing material: Ductile iron, brass
